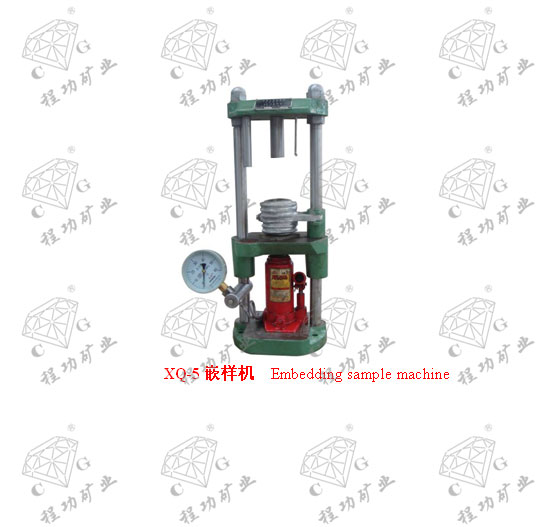

XQ-5嵌樣機供實驗室將不規則的小塊礦樣和電木粉混合，熱壓成形，以便于進行礦樣的研磨和鑒定。
XQ-5 embedding sample machine is used in the laboratory to mix irregular small ore samples and bakelite powder as well as thermoform the mixture, to make it easy to grind and identify ore samples.
該機采用手動油壓千斤頂加壓，通過電熱器加熱，使小塊礦樣和電木粉的混合物熱壓成形。嵌樣模外附有散熱裝置。
This machine uses hand-operated oil jack for pressurization and electric heater for heating, to thermoform the mixture of small ore samples and bakelite powder. The embedding sample mould is equipped with heat radiating device on its outside.
| 嵌樣模直徑 Embedded-like mode diameter | mm | 32 |
| 嵌樣模厚度 Embedded-like mode thiekness | mm | 8～12 |
| 電熱器 Heater | 220V、200W | |
| 液壓千斤頂額定壓力Rated pressure of hydraulic jacks | T | 5 |
| 液壓千斤頂最低高度Mininm of hydraulic jacks | mm | 210 |
| 液壓千斤頂大行程Large stroke of hydraulic jacks | mm | 116 |
| 壓力表 Manometer | kg/cm2 | 0～600 |
| 水銀溫度計 Mercury thermometer | ℃ | 0～200 |
| 外形尺寸 Overall dimensions | mm | 320×180×615 |
| 重量 Weight | kg | 38 |
