一、用途

I. Purpose

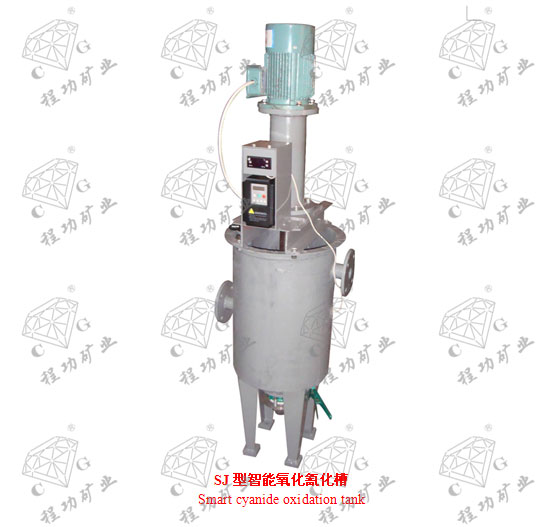

實驗室SJ型氰化槽可供地質、冶金、建材、化工等科研機構實驗室用于濕法浸出攪拌等。

Cyanidation vat model SJ for laboratory is designed for wet-type agitation leach for laboratories of scientific institutions of geology, metallurgy, building materials and chemical industries.

氰化槽采用外充氣，模擬現場更為實際。采用變頻技術，葉輪無級調速，數碼顯示，調整精確。還裝用數字溫控儀實時監控礦液溫度處于設定值。

This externally inflated cyanidation vat can simulate the site more practically and features frequency conversion technology, stepless speed regulation of impeller, digital display and accurate adjustment. This vat is also provided wit digital temperature controller for real-time monitoring of ore fluid temperature so as to keep this temperature at the set value.

氰化槽增加了外充氣功能。取下循環桶，安裝上葉輪即是浸吸槽。

Cyanidation vat has a external inflation function. This vat can be changed to an imbibition tank after the circulation barrel is removed and the impeller is mounted.

液晶顯示溫控儀監控礦漿溫度始終處于設定值。

LCD temperature controller ensures that the slurry temperature will always be kept at the set value.

二、技術參數

Ⅱ. Technical Parameters

型號規格 Model		SJ -50L	SJ -100L	SJ -200L
槽體容積 Tank Volume	L	50	100	200
葉輪直徑 Impeller dia.	mm	Ф120	Ф150	Ф180
葉輪轉速 Speed	r/min	0-2000	0-2000	0-2000
給礦粒度Feed size	mm	0.05-0.2	0.05-0.2	0.05-0.2
充氣量 Aeration		可調	可調	可調
槽體尺寸 Tank size	mm	Ф368×510	Ф488×600	Ф588×800
功率 Power	kw	0.75	1.1	1.5
質量Weight	kg	75	90	120
