CTB、CTN、CTS型單筒濕式永磁筒式磁選機
Wet permanent magnetic drum separator

國家行業標準JB/T7895

該機主要用于弱磁場濕式選別或除去細顆粒的強磁性礦物，廣泛用于選礦，洗煤和化工等行業，如：回收重介質選礦中的磁性重介質如重劑；鐵選礦中低濃渡礦漿的濃縮和磁鐵礦物的富集；處理強磁選機的給礦，清除其中的磁性或較弱磁性礦物及其連生體，防止磁介質堵塞。

This type of equipment is mainly used to select wet weak magnetic field and remove the strongly magnetic minerals of fine grains. They are widely used in mineral processing industry, coal washing industry, chemical industry, etc, e.g. recycle heavy formulas such as magnetic heavy media during heavy media separation, concentrate low-concentration slurry in iron ore and gather magnetic steel minerals, treat ore feeding from high-intensity magnetic separators, remove magnetic or weakly magnetic ores and coenobium, as well as prevent blockage of magnetic media.

在濕式磁選作業中，若要求獲得純凈的磁性礦物，通常選用順流型磁選機。此時，磁性礦物的回收率有可能會降低；若要求****限度地回收磁性礦物，則選用逆流型磁選機。此時，磁性礦物的品位有可能會降低。當要兼顧磁性礦物的品位和回收率時，以選用半逆流磁選機較為適宜。

During wet magnetic separation, to get pure magnetic minerals, downstream magnetic separators are usually selected. In such case, the recovery ratio of magnetic minerals might be reduced. If the magnetic minerals are required to be recycled to the largest extent, counter-current magnetic separators shall be selected. In this case, the grade of magnetic minerals might be reduced. If both the grade and recovery rate of magnetic minerals shall be taken into account, semi-countercurrent magnetic separators might be more appropriate.

型號規格 Model	筒徑 Dia.	筒長 Drum length	轉速 Speed	磁感強度 Magnetic inductino density	分選粒度 Partide sorting	處理能力 Capacity	功率 Power	重量 weight
型號規格 Model	mm	mm	r/min	mT	mm	m3/h	kw	t
CTB型單筒濕式半逆流永磁轉筒磁選機 Wet permanent magnetic drum separator for semi-backflow tan
CTB-718	750	1800	35	300	0-1	40-130	3	2.41
CTB-918	900	1800	28	300	0-1	80-260	4	3.55
CTB-924	900	2400	28	300	0-1	140-320	4	4.18
CTB-1015	1050	1500	21	300	0-1	70-250	5.5	3.47
CTB-1018	1050	1800	21	300	0-1	100-280	5.5	3.81
CTB-1021	1050	2100	21	300	0-1	130-310	5.5	4.15
CTB-1024	1050	2400	21	300	0-1	160-340	5.5	4.51
CTB-1030	1050	3000	21	300	0-1	220-400	7.5	5.19
CTB-1218	1200	1800	19	300	0-1	140-330	7.5	4.38
CTB-1221	1200	2100	19	300	0-0.6	170-360	7.5	4.74
CTB-1224	1200	2400	19	300	0-0.6	200-390	7.5	5.15
CTB-1230	1200	3000	19	300	0-0.6	260-450	7.5	5.96
CTB-1540	1500	4000	14	300	0-0.6	360-550	11	9.87
CTB-1545	1500	4500	14	300	0-0.6	＜600	18.5	16.9
CTN型單筒濕式逆流永磁轉筒磁選機 Wet permanent magnetic drum separator backflow
CTN-718	750	1800	35	300	0-0.6	40-130	3	2.41
CTN-918	900	1800	28	300	0-0.6	80-260	4	3.55
CTN-924	900	2400	28	300	0-0.6	140-320	4	4.18
CTN-1015	1050	1500	21	300	0-0.6	70-250	5.5	3.47
CTN-1018	1050	1800	21	300	0-0.6	100-280	5.5	3.81
CTN-1021	1050	2100	21	300	0-0.6	130-310	5.5	4.15
CTN-1024	1050	2400	21	300	0-0.6	160-340	5.5	4.51
CTN-1027	1050	2700	21	300	0-0.6	190-270	7.5	4.85
CTN-1030	1050	3000	21	300	0-0.6	220-400	7.5	5.19
CTN-1033	1050	3300	21	300	0-0.6	250-430	7.5	5.93
CTN-1218	1200	1800	19	300	0-0.6	140-330	7.5	4.38
CTN-1221	1200	2100	19	300	0-0.6	170-360	7.5	4.74
CTN-1224	1200	2400	19	300	0-0.6	200-390	7.5	5.15
CTN-1227	1200	2700	19	300	0-0.6	230-420	7.5	5.54
CTN-1230	1200	3000	19	300	0-0.6	260-450	7.5	5.96
CTN-1540	1500	4000	14	300	0-0.6	360-550	11	9.87
CTS型單筒濕式順流永磁轉筒磁選機 Magnetic wet drum separator for concurrent flow
CTS-718	750	1800	35	300	0-6	40-130	3	2.41
CTS-918	900	1800	28	300	0-6	80-260	4	3.55
CTS-924	900	2400	28	300	0-6	140-320	4	4.18
CTS-1015	1050	1500	21	300	0-6	70-250	5.5	3.47
CTS-1018	1050	1800	21	300	0-6	100-280	5.5	3.81
CTS-1021	1050	2100	21	300	0-6	130-310	5.5	4.15
CTS-1024	1050	2400	21	300	0-6	160-340	5.5	4.51
CTS-1027	1050	2700	21	300	0-6	190-270	7.5	4.85
CTS-1030	1050	3000	21	300	0-6	220-400	7.5	5.19
CTS-1033	1050	3300	21	300	0-6	250-430	7.5	5.93
CTS-1218	1200	1800	19	300	0-6	140-330	7.5	4.38
CTS-1221	1200	2100	19	300	0-0.6	170-360	7.5	4.74
CTS-1224	1200	2400	19	300	0-0.6	200-390	7.5	5.15
CTS-1227	1200	2700	19	300	0-0.6	230-420	7.5	5.54
CTS-1230	1200	3000	19	300	0-0.6	260-450	7.5	5.96
CTS-1540	1500	4000	14	300	0-0.6	360-550	11	9.87

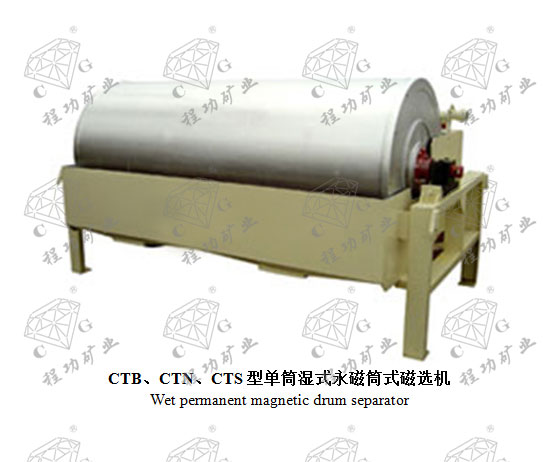

CTB、CTN、CTS型單筒濕式永磁筒式磁選機 Wet permanent magnetic drum separator
