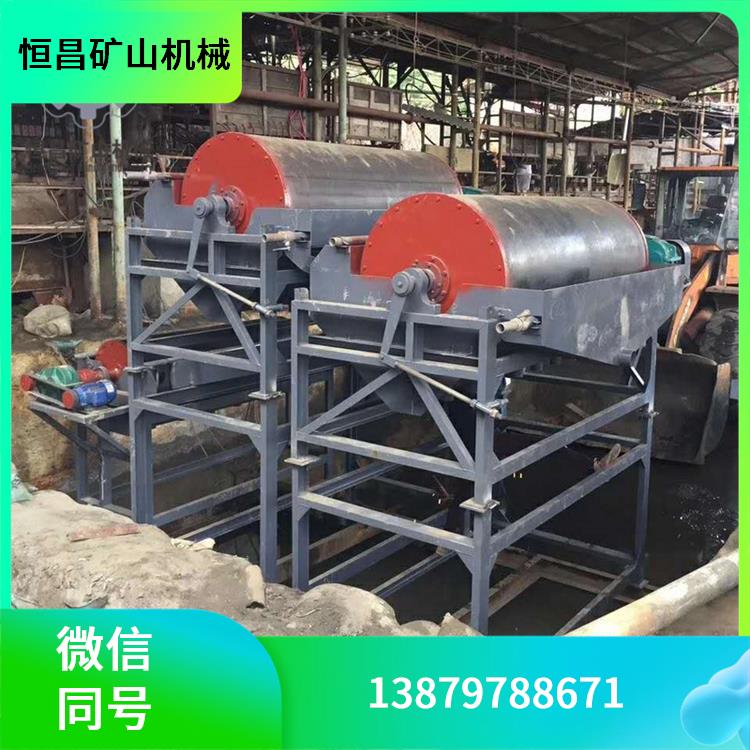

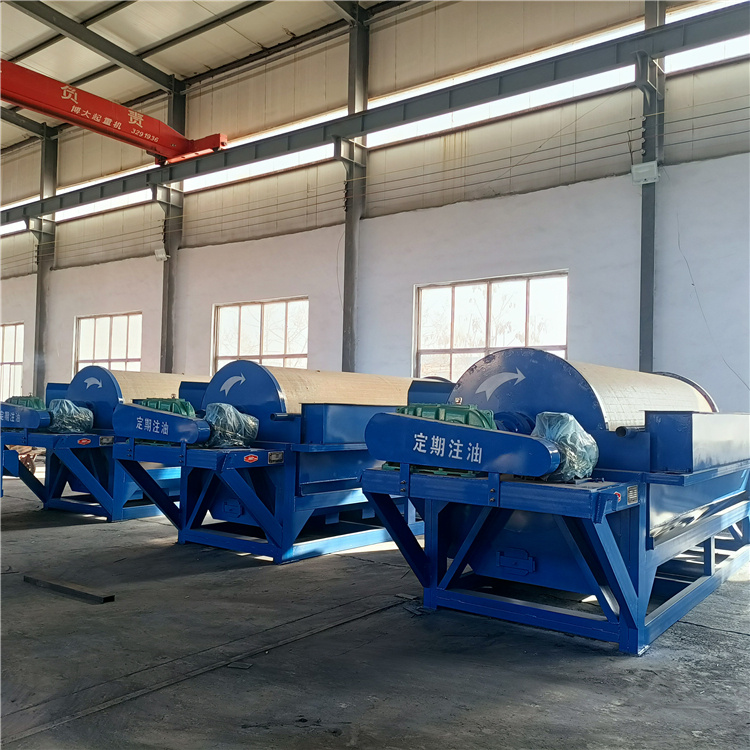

CGR型稀土永磁輥式強磁磁選機 Rare Earth Roll-type magnetic separator

一、簡介

I. Profile

永磁輥式強磁磁選機，磁源采用高性能永久磁性材料稀土釹鐵硼經聚磁組合而成。具有機型輕，磁場強度高，耗能低，性能穩定，適用性廣等優點。

With rare earth roll-type magnetic separators, the magnetic sources are made up of high-performance permanent magnetism rare earth NdFeB through magnet. Such separators have advantages such as light weight, high magnetic intensity, low power consumption, stable performance, wide applicability, etc.

該機用于貧錳礦石的磁選，每磁選處理一噸錳礦僅需耗電0.2度左右，能一次性將粒度小于15毫米的貧錳礦石富集、提高錳品位3-18度，很好地解決了歷年來貧錳礦石不能入爐冶煉，銷售難的一大問題。

Such equipment is used for the magnetic separation of lean manganese ores. Only around 0.2KWH of electricity is needed for the magnetic separation of one ton of manganese ores. It can gather lean manganese ores with particle size of less than 15mm for one time, raise the manganese grade by 3-18, and well solve the problem that lean manganese ores can not be smelted in furnaces and are not easy to be sold.

用于稀土礦的磁選、回收，能將盤式磁選機，搖床未能回收的稀土尾礦充分地回收、利用，回收率可達95%以上；用于鋯英、金紅石、鈮鉭礦的磁選，能一次性達到磁選目的。

It is used for the magnetic separation and recycle of rare earth ores, can fully recover and use rare earth tailing not able to be recycled by disk-type magnetic separators and oscillating tables. The recovery rate can reach as high as over 95%. It can also be used for the magnetic separation of zircon, rutile and tantalite. The purpose of magnetic separation can be achieved once.

二、用途

II. Purpose

該機主要適用于錳礦、稀土礦、鈮鉭礦、褐鐵礦、鉻鐵礦、鈦礦、鋯英、獨居石、金紅石、石榴石、紅柱石等礦物的分選、提純及石英、長石等非金屬物料的除鐵。

This kind of equipment is mainly used for the separation of ores such as manganese ores, rare-earth metal ores, tantalite, limonite, chromite, titanium ores, zirconite, monazite, rutile, garnet and andalusite as well as the deironing of non-metal materials such as quartz and feldspar.

三、磁選機原理圖

2OJo2sKFNqI50huEnHyWZEAvZX1 - 副本.jpg

四、技術參數

1、單輥系列

規格	磁感應強度	傳動電機	給料電機	磁輥轉速	給料粒度	處理能力	機重
規格	MT		kw	r/min	mm	t/h	kg
CGRф110×400	1100~1450	0.37	0.24	0~300	10~0	0.6~0.2	250
CGRф110×500	1100~1450	0.37	0.24	0~300	10~0	0.75~0.23	270
CGRф110×650	1100~1450	0.37	0.24	0~300	10~0	0.1~0.3	280
CGRф135×280	1100~1450	0.37	0.24	0~300	15~0	0.75~0.12	270
CGRф135×400	1100~1450	0.37	0.24	0~300	15~0	1.0~0.18	290
CGRф135×500	1100~1450	0.37	0.24	0~300	15~0	1.3~0.2	300
CGRф135×650	1100~1450	0.37	0.24	0~300	15~0	1.7~0.3	300
CGRф160×280	1100~1450	0.37	0.24	0~300	15~0	0.85~0.13	260
CGRф160×400	1100~1450	0.37	0.24	0~300	15~0	1.4~0.2	330
CGRф160×500	1100~1450	0.37	0.24	0~300	15~0	1.8~0.25	390
CGRф160×650	1100~1450	0.37	0.24	0~300	15~0	2.3~0.35	460
CGRф200×280	1100~1450	0.37	0.24	0~300	15~0	1.4~0.2	280
CGRф200×400	1100~1450	0.37	0.24	0~300	15~0	2~0.3	350
CGRф200×500	1100~1450	0.37	0.24	0~300	15~0	2.5~0.35	410
CGRф200×650	1100~1450	0.37	0.24	0~300	15~0	3.2~0.45	480
CGRф240×280	1100~1450	0.37	0.24	0~300	15~0	1.7~0.25	320
CGRф240×400	1100~1450	0.37	0.24	0~300	15~0	2.5~0.35	400
CGRф240×500	1100~1450	0.37	0.24	0~300	15~0	3~0.45	550
CGRф240×650	1100~1450	0.37	0.24	0~300	15~0	4~0.58	650
CGRф380×400	1100~1450	0.37	0.24	0~300	15~0	3.5~0.5	470
CGRф380×500	1100~1450	0.37	0.24	0~300	15~0	4.6~0.65	680
CGRф380×650	1100~1450	0.37	0.24	0~300	15~0	5.5~0.6	790

2、雙輥系列

規格	磁感應強度	傳動電機	給料電機	磁輥轉速	給料粒度	處理能力	機重
規格	MT		kw	r/min	mm	t/h	kg
2CGRф110×400×280	1100~1450	0.37	0.24	0~300	10~0	0.8~0.23	300
2CGRф110×500×400	1100~1450	0.37	0.24	0~300	10~0	1.1~0.3	320
2CGRф110×650×400	1100~1450	0.37	0.24	0~300	10~0	1.3~0.36	360
2CGRф135×400×280	1100~1450	0.37	0.24	0~300	15~0	1.5~0.3	290
2CGRф135×500×400	1100~1450	0.37	0.24	0~300	15~0	1.9~0.4	320
2CGRф135×650×400	1100~1450	0.37	0.24	0~300	15~0	2.3~0.46	350
2CGRф135×650×500	1100~1450	0.55	0.24	0~300	15~0	2.5~0.5	380
2CGRф160×400×280	1100~1450	0.37	0.24	0~300	15~0	1.95~0.3	400
2CGRф160×500×400	1100~1450	0.55	0.24	0~300	15~0	2.6~0.4	460
2CGRф160×650×400	1100~1450	0.55	0.24	0~300	15~0	3~0.45	520
2CGRф160×650×500	1100~1450	0.55	0.32	0~300	15~0	3.3~0.5	580
2CGRф200×400×280	1100~1450	0.55	0.24	0~300	15~0	2.6~0.35	440
2CGRф200×500×400	1100~1450	0.55	0.24	0~300	15~0	3.4~0.46	570
2CGRф200×650×400	1100~1450	0.55	0.32	0~300	15~0	4~0.54	620
2CGRф200×650×500	1100~1450	0.75	0.32	0~300	15~0	4.4~0.6	660
2CGRф240×400×280	1100~1450	0.55	0.24	0~300	15~0	3.5~0.4	520
2CGRф240×500×400	1100~1450	0.75	0.24	0~300	15~0	4.7~0.5	650
2CGRф240×650×400	1100~1450	0.75	0.32	0~300	15~0	5.5~0.6	740
2CGRф240×650×500	1100~1450	0.75	0.32	0~300	15~0	6~0.7	780
2CGRф380×400×280	1100~1450	0.55	0.32	0~300	20~0	4.5~0.6	950
2CGRф380×500×400	1100~1450	0.75	0.32	0~300	20~0	6~0.77	1260
2CGRф380×650×400	1100~1450	0.75	0.32	0~300	20~0	7~0.9	1450

五、結構與工作原理

Ⅴ. Structure and Working Principle

機器由機架、稀土強磁輥筒、料斗、振動給料裝置（注：用于細粒易溜礦物的磁選無配此裝置）、輸送帶、不銹鋼接料裝置、無極調速電機等部件組成。

This kind of machine is composed of frame, rare earth high intensity drum, hopper, vibrations filling equipment (note: this equipment is not installed for the magnetic separation of fine-grained easily sliding ores), conveyor belt, stainless steel material receiving apparatus, stepless speed regulation motor, etc.

礦料由料斗落入振動給料盤均勻散落的在輸料帶上，再由輸料運送到磁輥上磁選。由于磁性礦物和非磁性礦物經過磁輥時受磁感應力的不同，而落入兩個不同的接礦槽中，從而達到礦物分選目的。

Mineral aggregate falls from the hopper to the vibrating feed tray and spreads evenly on the conveyor belt. Then it is transported from the conveyor belt to the magnetic roller for separation. Since magnetic minerals and non-magnetic minerals bear different electromagnetic induction force when passing the magnetic rollers and thus fall into two different ore-receiving tanks, the purpose of mineral separation can be achieved.
