·MLS型立式輥磨機 Vertical Roller Mill

MLS型立式輥磨機 Vertical Roller Mill

MLS型立式輥磨機是被廣泛應用于水泥行業生料生產的高效、節能型研磨設備,經20年的開發研制已形成了滿足日產700t、1000t、1500t、2000t、2500t、3000t、4000t、5000t水泥生產線的系列產品。其中MLS3626立式輥磨機可滿足2500t/d水泥生產線原料制備的需要,獲2004年度遼寧省科技進步二等獎;MLS4531立式輥磨機可滿足5000t/d水泥生產線原料制備的需要,獲2004年度中國機械工業科學技術二等獎. ,截至2005(8)年底已銷售128(300)臺。

MLS vertical roller mills manufactured by Shenyang Heavy Machinery Group Co., Ltd are high-efficiency and energy-saving grinding equipment which are widely used for the production of raw materials in cement industry. After 20 years of research and development, it has now formed production lines that manufacture 700t, 1000t, 1500t, 2000t, 2500t, 3000t, 4000t and 5000t of cement series products every day. Its MLS3626 vertical roll mills can meet the requirement of raw material preparation of 2500t/d on the cement production line. It has won the Second Prize of Science and Technology Development for Liaoning Province in 2004. Its MLS4531 vertical roll mills can meet the requirement of raw material preparation of 5000t/d on the cement production line. It has won the Second Prize of Science and Technology in China 's Machinery Industry in 2004. Till the end of 2005 (8), it has sold 128 (300) pieces of such equipment.

 MLS立式輥磨機的特點是高效節能,輥、盤優化設計,提高粉磨效率;選粉機為籠型轉子選粉機,電機變頻調速,提高了選粉效率;增設抬輥裝置,實現了磨機輕載、空負荷啟動;增加壓力框架水平緩沖裝置,降低磨機的振動;磨機采用外部物料循環設計,降低磨損,減少系統電耗;中心進料、易損件壽命長等。磨機設計水平已達到國際先進水平。

MLS vertical roller mills are characterized by high-efficiency and energy-saving, optimal design of roller and disc, and improved grinding efficiency. The powder concentrator is cage model rotor powder concentrator. Frequency conversion speed regulation of motor improves separating efficiency. Roller lifting device is added to realize light load of mills and no load startup. Pressure frame horizontal buffering device is added to reduce vibration of mills. The mills adopt the design of external material circulation which reduces abrasion and system electricity consumption. Material is fed in the center and the easily damaged parts have long service life. The design of mills has reached advanced world standard.

目前,公司的MLS立式輥磨機已經形成系列,具有系列化、通用化、標準化的特點,滿足了5000t/d 水泥生產線以下的原料制備的需要,對國內外水泥工業的發展起到了極大的推動作用。

At present, MLS vertical roller mills of the company have formed series. They are versatile and standard and meet the requirement of raw material preparation of 5000t/d on the cement production line, which greatly promote the development of cement industry at home and abroad.

技術參數

型號 磨盤直徑 磨輥直徑 給料粒度 產量 主電動機功率 磨盤轉速 重量
mm mm ≤mm t/h kw r/min T
MLS1411 1400 1185 35 18 225 37.96 49
MLS1612 1600 1200 40 25 280 36.16 70
MLS1813 1800 1300 45 35 350 34 98
MLS2115 2100 1500 50 44 400 31.6 104
MLS2215 2250 1570 65 52.5 500 31 114
MLS2417 2450 1750 80 75 630 29.5 132
MLS2619 2650 1900 80 90 710 28.1 167
MLS2921 2900 2100 80 110 1000 26.8 210
MLS3123 3150 2300 80 150 1120 25 246
MLS3424 3450 2430 90 180 1300 24.5 310
MLS3626 3600 2650 90 190 1950 25.2 380
MLS3726 3750 2650 95 210 2200 24.5 450
MLS4028 4000 2850 100 310 3100 22.9 630
MLS4531 4500 3150 110 360 3600 21.6 787
MLN1613 1600 1300 40 10 300 35 65
MLN2417 2450 1850 40 32 870 29.2 170
MLN2619 2650 1900 40 45.5 970 28.1 203
MLN3424 3450 2430 40 94 1800 24.5 410

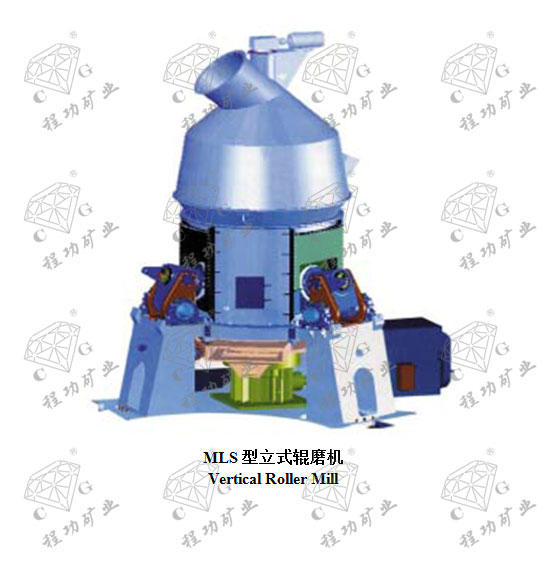

MLS型立式輥磨機Vertical Roller Mill
