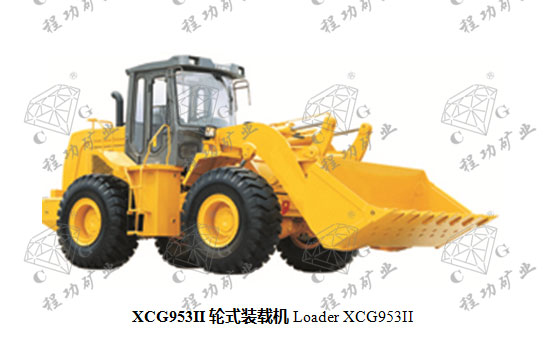

XCG953II輪式裝載機 Loader XCG953II
一、優越的參數：
1、獨有的節能型專利技術，雙泵合分流、轉向優先，高效節能，動力性更佳，油耗更低。
2、單搖臂，長軸距，通用度極大的零部件。
3、超高的卸高度（3060mm)。
4、超大的額定載重量（3200kg)。
5、優雅的外觀，整機高大、協調。
6、結構強度儲備充足。
7、優化與仿真技術設計的連桿機構，掘起力大，平穩性好。
8、集中布置的黃油注點，方便維護與保養。
9、合理的橋荷分布，整機穩定性好。
10、優越的整機參數，具有非凡的作業效率。
11、可配有多種選裝件以滿足不同用戶要求。
12、適合挖掘與高卸載工況。
二、參數參數及外形尺寸
| 額定功率 | kw | 162 |
| 外形尺寸 | ||
|---|---|---|
| 全長 | mm | 7380 |
| 全寬 | mm | 2990 |
| 全高 | mm | 3390 |
| ****卸載高度 | mm | 3030 |
| 相應卸載距離 | mm | 1300 |
| 輪胎規格 | PR | 23.5-25-16 |
| 操作質量 | kg | 16300 |
| 鏟斗容量 | m3 | 3 |
| 額定載荷 | kg | 5000 |
| 轉向角度 | （o） | ±35 |
| 最小轉彎半徑(鏟斗外側) | mm | 6450 |
| 變速箱 | XG | |
| 變速檔位數(前進/后退) | 2/1 | |
| 燃油箱容量 | L | 200 |
| 液壓油箱容量 | L | 280 |
| 提升時間 | s | ≤6.8 |
| 工作裝置三項和 | s | ≤12.3 |
| 行駛速度 | ||
| 前進 1 檔 | km/h | 11.5 |
| 前進 2 檔 | km/h | 38 |
| 后退 1 檔 | km/h | 16 |
三、可選部件：
動力機：上柴G128G1c、輕質斗、重載斗、加長動臂、側卸裝置、夾木（管、草）裝置、高卸載裝置、除雪鏟裝置、液壓破碎錘、自動秤重裝置、集中潤滑裝置、暖風、空調（冷暖）、GRAMMER豪華座椅（扶手、頭枕、安全帶）、AM/FM收音機、PARKER液壓軟管。
Superior Features
1.Small turning radius is suitable for working in confined areas.
2.Turbocharged engine for excellent performance and high torque reserve.
3.Modified overrun clutch and high-class key bearings for reliable torque converter and transmission.
4.Aluminium-plate, wind-cooled radiator and optimized air flow design provide superior heat dissipation.
5.Full hydraulic, Q-Amp steering unit.
6.Xiagong patent: dual-pump confluence and divided-flow, steering priority, equivalence relief hydraulic system for high efficiency and low oil consumption.
7.Famous fittings and optimized pipelines design，fully leakproof for more reliable and good-looking.
8.New gear-rack control for easy and reliable operation.
9.Modified chassis machining process for more accurate and reliable.
10.Z-bar linkage for high breakout force and exceptional productivity.
11.Quenched integral cutting edge bucket with side teeth for more strength and better wearing resistance.
12.Optional various implements and buckets.
13.Centralized lubrication on the rear chassis, grease fitting with dust cover for easy maintenance and high cleanliness.
14.Waterproof and dustproof electrical components, world-famous maintenance-free batteries, main power supply switch cut off by the negative terminal, for safety and reliability.
15.Dish brake made of ductile iron ensures higher strength and safe brake.
16.A roomy cab with two-colour interior decoration, sound insulation, heat insulation and shock absorption ensures excellent visibility. Air conditioning and heating system are optional.
17.More than twenty kinds of improvements.
Specification
| Rated power | 162kw |
| Overall dimensions | |
|---|---|
| Overall length | 7380mm |
| Overall width | 2990mm |
| Overall height | 3390mm |
| Dumping height | 3030mm |
| Dumping reach | 1300mm |
| Specification of type | 23.5-25-16PR |
| Performance parameters of entire machine | |
| Operating weight | 16300kg |
| Bucket capacity | 3m3 |
| Rated loading capacity | 5000kg |
| Turning angle | ±35o |
| Turning radius | 6450mm |
| Gear box | XG |
| Number of shifts (forward/reverse) | 2/1 |
| Fuel tank capacity | 200L |
| Hydraulic fuel tank capacity | 280L |
| Lifting time | ≤6.8s |
| Total cycling time | ≤12.3s |
| Forward gear I | 11.5km/h |
| Forward gear II | 38km/h |
| Reverse gear I | 16km/h |
Optional equipment
1. AM/FM Radio. 2. Seat belt, arm rest, pillow 3. Grammer Seat. 4. Light-duty bucket, heavy-duty bucket, extended boom 5. Timber grapples, side-dump bucket, high dumping device 6. Heating system, air conditioning system 7. PARKER hydraulic hoses. 8. Engine: Shangchai D9-220 9. Snow-removing bucket, automatic weighing machine, automatic greasing device
