·SJ型雙葉輪浸出槽技術參數Parameter of the Double

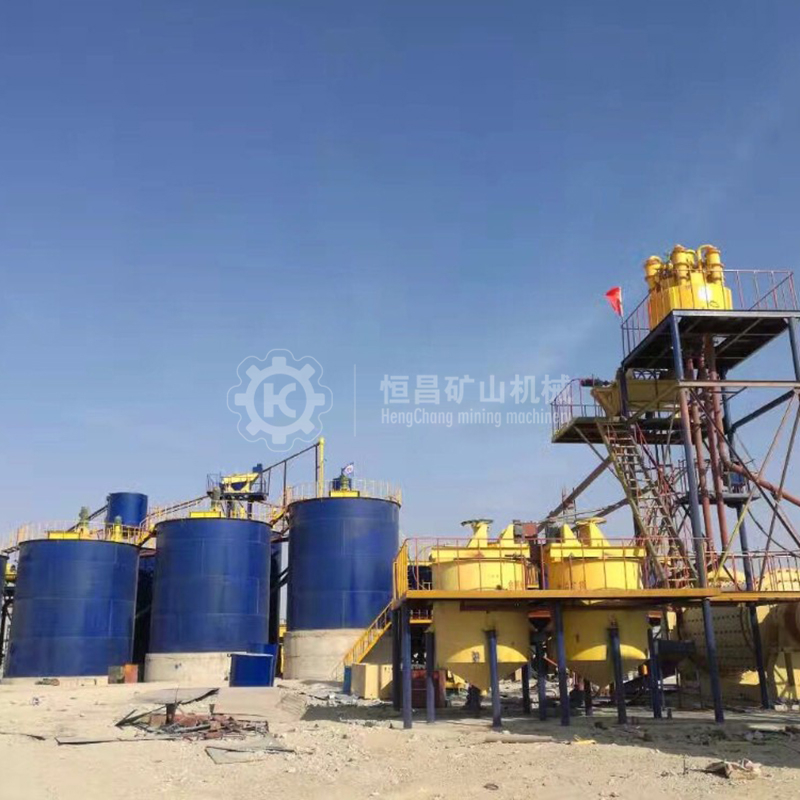

雙葉輪浸出槽

SJ型雙葉輪浸出槽技術參數
Parameter of the Double impeller leaching and agitating tank

雙葉輪高效浸出（吸附）攪拌槽的特點是結構合理、緊湊、傳動效率高，采用兩個新型葉輪，葉輪直徑大、轉速低、攪拌功耗小、減少炭的磨損，中空軸通氣至底端，空氣分散均勻、氣泡小。攪拌強度適中，槽內礦漿濃度、細度分布基本一致，可提高氰化的浸出率，炭的吸附率。我公司的浸出（吸附）槽已對其充氣統和傳動系統做了改進。

This machine features a reasonable and compact structure, and high transmission efficiency. Twin impeller is used, which has bigger diameter, lower turning speed, lower agitation power consumption, and lower wear of the carbon. Air is sent to the bottom via pipes, so that it is evenly sparged with less bubble. It gives moderate agitating strength, to keep the slurry density and fineness to be basically uniform in the tank , so as to improve leaching ability of the cyanidation and the adsorption intensity. The aeration system and the transmission system are innovated for the new model of the twin impeller impeller high-efficiency leaching (adsorption) agitation thak..

型號規格Model	槽體尺寸Size of tank	有效容積Volume	葉輪轉速Impeller revolution	礦漿濃度	功率Power	質量Weight
型號規格Model	m	m³	r/min	（%）	kw	t
SJ1.5×1.5	Φ1.5×1.5	2.25	28	＜45	18.5	2.21
SJ2×2.5	Φ2×2.5	6	72	＜45	2.2	2.80
SJ2.5×3.15	Φ2.5×3.15	13	57	＜45	2.2	3.37
SJ3×3.15	Φ3×3.15	19	43	＜45	4	5.63
SJ3×3.5	Φ3×3.5	23	43	＜45	4	5.60
SJ3.15×3.55	Φ3.15×3.55	21	40.85	＜45	4	5.80
SJ3.5×3.5	Φ3.5×3.5	30	52	＜45	5.5	5.70
SJ3.55×4	Φ3.55×4.	34	36.3	＜45	4	6.65
SJ4×4	Φ4×4	48	45.71	＜45	5.5	7.34
SJ4×4.5	Φ4×4.5	48	31.5	＜45	5.5	8.29
SJ4.5×5	Φ4.5×5	72	31	＜45	7.5	10.80
SJ5×5.6	Φ5×5.6	98	27.2	＜45	7.5	11.43
SJ5.5×6	Φ5.5×6	112	31	＜45	7.5	14.29
SJ6×6.5	Φ6×6.5	170	23	＜45	18.5	18
SJ6.5×7	Φ6.5×7	215	23	＜45	18.5	29.03
SJ7×7.5	Φ70×7.5	269	21	＜45	22	32.8
SJ7.5×8	Φ7.5×8	331	21	＜45	22	42.8
SJ8.0×8.5	Φ8×8.5	342	16.4	＜45	22	42.47
SJ8.5×9	Φ8.5×9	480	17	＜45	22	46.62
SJ9×9.5	Φ9×9.5	572	17	＜45	30	53
SJ9.5×10	Φ9.5×10	673	14	＜45	30	58
SJ10×10.5	Φ10×10.5	785	14	＜45	30	64
SJ11×12	Φ11×12	1140	13	＜45	55	73
SJ12×13	Φ12×13	1470	13	＜45	75	86
